Select WCS TOP – top work coordinate system, usually selected for milling top side of workpieces on 3-axis milling machines. It is recomended that file is in step format.

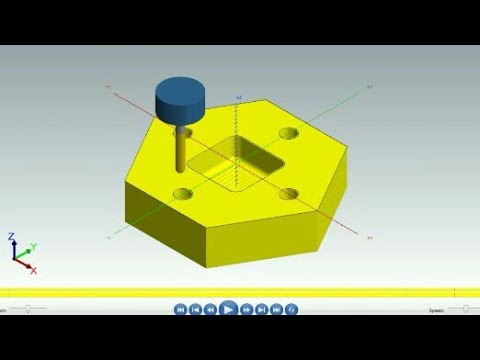

SELECTING AND SETTING MACHINE DEFINITION:Ĭhose Machine type – Mill – Manage list… from machine definition menu select MILL – 3 AXIS HMC.MMD-6. Manual mode offers full control over the B-axis angles along the contour.Milling some wooden part using Mastercam 1. Automatic mode is said to produce safe toolpath motion that keeps the insert in contact with the contour. The toolpath features a top-down workflow and provides users with either Automatic or Manual motion control. B-Axis Contour Turning is a finishing toolpath that enables rotation of the B-axis while the tool is cutting. The software also features a new B-Axis contour turning toolpath added to the Turning suite for the Mill-Turn product. The Dynamic OptiRough and Area Roughing toolpaths can now be aware of undercut stock conditions, resulting in improvement to the toolpath motion, including less air cutting. Users can also now detect undercut stock when machining.
For example, to create a toolpath that morphs between two surfaces, users select Unified from the Multiaxis toolpaths, and then set the Cut Pattern to two surfaces with the Morph style. Instead, the Unified toolpath enables access to these cut patterns when users add the appropriate curves.
Morph, Parallel, Along Curve and Project Curve are no longer individual toolpaths in Mastercam 2023. One of the top improvements is the ability to consolidate multi-axis toolpaths. CNC Software’s Mastercam 2023 features multi-axis, mill-turn advancements, which were directly driven by feedback from Mastercam users and shops.
